BoM: a MicroStation Application

BoM™ CONNECT Edition is an AddIn or App that adds functionality to Bentley Systems MicroStation^® CONNECT. It's a tool for architects, engineers, planners and technicians.

BoM facilitates annotatation of DGN elements

BoM provides its own set of MicroStation key-in commands. They become active after you have loaded BoM. Those commands can be used to start actions by BoM.

The MicroStation key-in to start BoM is
mdl load BoM

When BoM is loaded, you will see its tool box …

BoM Key-In Commands

There are several types of commands provided by BoM …

Actions, for example to create a label
FlexiTable prompts FlexiTable to harvest data that it presents in a worksheet
Reports & Tables provide short cuts to MicroStation commands
Search or Query to find user-defined properties and values
Settings, for example to set the decimal accuracy of a label
File
Help

Actions

Interactive Action Commands
Command	Effect	Comment
BOM TAG SINGLE	Tag a single element	Attaches Item Types data and adds a text label
BOM TAG EDIT	Edit a tagged element's Item Types data and update its text label
BOM TAG REMOVE	Removes Item Types data and deletes label
BOM TAG QUERY	Query a element for its data	Read but don't modify BoM data
BOM TAG PROPERTY property name, new value	Modify only the specified value	Works with Fences and Selection Sets
BOM TAG RENUMBER, new value	Modify & increment the Item ID	Works with Fences and Selection Sets

Bulk Action Commands
Command	Effect	Comment
BOM TAG MULTI	Tag multiple elements	Pops the Tag Multiple dialog. Attaches Item Types and labels to multiple elements on a specified level
BOM ALIGN	Move each label relative to its host	Position depends on the justification setting

See the Advanced BoM page for more information about tagging multiple elements.

Search and Query

Search and Query Commands
Command	Effect	Comment
BOM QUERY CHOOSE	Pops the Query dialog	Technology Preview
BOM SEARCH	Pops the Search dialog	Technology Preview

See the BoM Search page for more information about search and query tools.

FlexiTable

FlexiTable
Command	Effect	Comment
BOM FLEXITABLE POP	Start FlexiTable	Opens the FlexiTable dialog

Reports, Tables & Named Groups

Reports, Tables & Named Groups
Command	Effect	Comment
BOM REPORT CREATE	Start MicroStation's Report tool	Uses a pre-defined report template
BOM REPORT DEFINE	Creates or re-creates the Report definitions supplied with Annotator	Creates a pre-defined report template
BOM REPORT DELETE	Deletes the Report definitions supplied with Annotator	Deletes each pre-defined report template
BOM TABLE CREATE	Start MicroStation's Table tool
BOM NAMEDGROUP DIALOG property name	Pops the Annotator Group Properties dialog	Add DGN elements having the specified property to a Named Group

Settings

Settings Dialog
Command	Effect	Comment

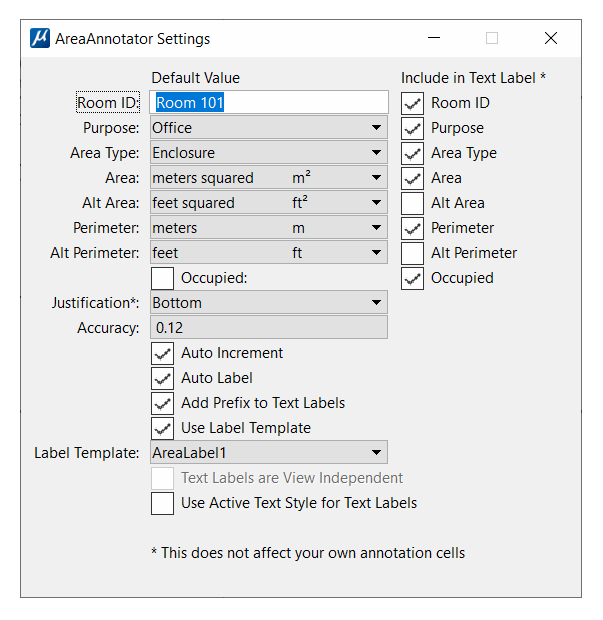

BOM DIALOG SETTINGS	Pop the BoM Settings dialog

Settings Commands
Command	Effect	Comment
BOM SET TEXTSTYLE	Set the Text Style used to create labels
BOM SET JUSTIFICATION	Set the justification used to create labels
BOM SET ACCURACY	Set the decimal accuracy when composing an BoM label	Default is two decimal places
BOM SET FLAG PROPERTY	Include the named property in a label	Default is on
BOM SET FLAG AUTOLABEL	Automatically label each DGN element	Default is on
BOM SET FLAG INCREMENT	Auto-increment the ID Item	Default is on
BOM SET DELTA	Set the ID increment delta (Δ)	If Δ equals 2, for example, then Item 101 → Item 103. Default is Δ = 1
BOM SET LEVEL	Set the level name used to create text labels	Does not affect your own annotation labels

Help

Help Commands
Command	Effect	Comment
BOM HELP ABOUT	Pops a dialog with brief information about BoM

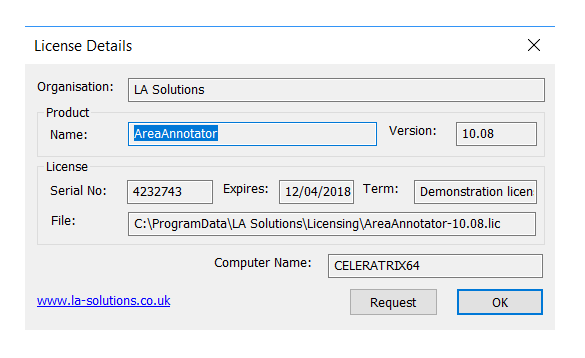

BOM HELP LICENSE	Writes license information to the Message Center
BOM HELP CFGVARS	Shows the configuration variables used by BoM
BOM HELP DOCUMENT	Shows BoM help
BOM HELP PROPLIST	Shows a list of property names used by this app's Item Type
BOM HELP PROPPICKLIST	Shows a list of values, if any, that can be used by the named property
