Hello World using PyQt

Version 4

Q How do I specify an icon for the dialog?

Q How do I organise the layout of a dialog?

Q How do I show a menu on a dialog?

Q How do I specify an icon for a menu?

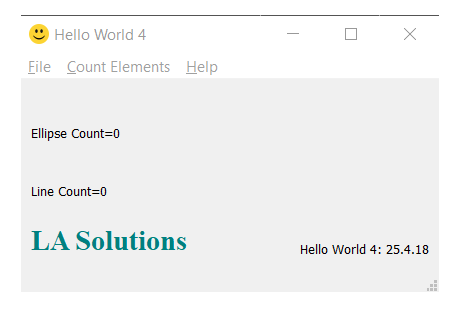

A Here's a small Python program that uses the PyQt library. It shows a small, resizable, dialog …

Python Implementation

The Hello World 4 example borrows from Python articles and examples you can find on the Internet. It adds the MicroStation requirements for a dialog to work harmoniously as a Python app.

This example uses the PyQt user interface (abbreviated to UX or UI). PyQt terms its UX objects widgets. A widget is part of a window or dialog: a window or dialog usually contains several widgets. In this example we use QWindow, QMenu, QLabel and other widgets.

Dialog Layout

This app adds a menu bar to the dialog, by calling QMainWindow.menuBar(). The menu is placed automatically at the top of the dialog. The dialog uses a QGridLayout. The text in that grid layout is displayed by QLabel widgets.

Menu Actions

The app calls menuBar.addMenu(), once for the File menu, twice for the Count menus, and again for the Help menu. Beneath the menu bar, each menu contains items, in this example the File|Exit and Help|Documentation sub-menus. When you choose a menu item, the PyQt menu triggers an action. The File|Exit menu triggers the exitCall(), which in turn calls QWindow.close() to exit the app …

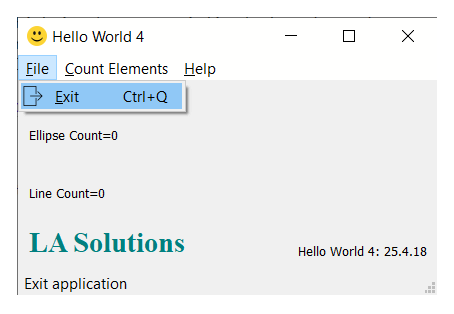

• The File|Exit menu triggers the exitCall(), which calls QWindow.close() to exit the app

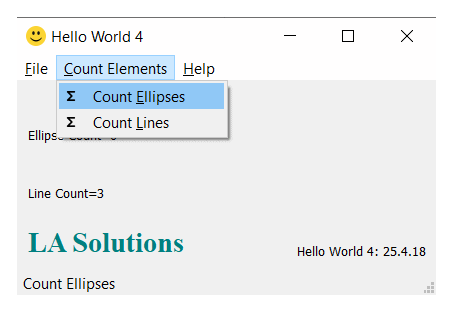

• The Commands|Count Ellipses menu triggers the count_ellipses(), which invokes a specialised element counter
• The Commands|Count Lines menu triggers the count_lines(), which invokes a specialised element counter

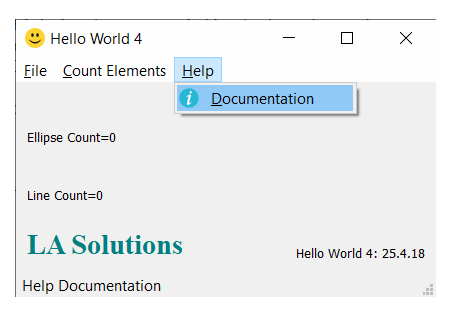

• The Help|Documentation menu triggers the helpDocCall(), which calls your browser to open a web page

Class Inheritance

This example builds on the Hello World examples. It uses class inheritance by providing a main window base class WindowBase, which is defined in file qt_window_base_class.py. That base class performs some actions that are required by any QMainWindow. Those actions include that windows messages are passed to MicroStation, so that the Python application doesn't make MicroStation unresponsive.

class MainWindow(WindowBase):
    # Initialize the main window class
    def __init__(self):
        # Call the parent class's constructor to initialize the main window
        super().__init__("MicroStation Python")
        # The Window ID may be useful when interacting with Microsoft Win32 API
        #self.storedWinId = self.winId()

It sets the main window's icon, which in this example is a smiley face …

	iconPath = la_utilities.getFileFromScriptFolder ('smiley-icon.png')
	self.setWindowIcon(QIcon(iconPath))

Message Pump

The message pump ensures that Windows messages are not blocked. A timer updates MicroStation's UI every so often so that it remains responsive …

# This function was adapted from the delivered example QtClock
def start_message_pump_timer(self):
	_TICK = 1000 # milliseconds
	timer = QTimer()   # create a QTimer object
	timer.timeout.connect(updateMstn)  # connect the timer's timeout signal to the updateMstn function
	timer.start(_TICK) # start the timer with an interval of _TICK milliseconds

def updateMstn ():
    ''' Called by the message pump timer. '''
    PyCadInputQueue.PythonMainLoop()

Utility Modules

There are several Python utility modules …

• la_solutions_utilities.py provides a handful of functions that are generally useful but don't belong in any particular project
• qt_window_base_class.py provides the window base class

The Python source code of Hello World V4 is available for download. The ZIP package includes several files …

• HelloWorld4.py
• la_solutions_qt_widgets.py
• qt_window_base_class.py
• la_solutions_utilities.py

Icon files are in the Icons folder …

• smiley-icon.png (the Smiley icon shown in the dialog's top-left corner)
• icons8-mouse.svg
• sigma-svgrepo-com.svg (the Sigma Σ symbol shown in the Count Elements menu)
• exit-svgrepo-com.svg (the File|Exit icon)
• icons8-info-64.svg (the Help i icon)

The app file is HelloWorld4.py. It uses several Python library files …

• qt_window_base_class.py provides the window base class for the main window in the app file.
• la_solutions_utilities.py provides some general-purpose utilities.

Unpack the ZIP file and copy the Python files into a folder that MicroStation knows about. Copy the images files into the same folder.

Use MicroStation's Python Manager to find and execute the script.

Questions

Post questions about MicroStation Python programming to the MicroStation Programming Forum.
