Questions similar to this appear on the Bentley Discussion Groups. These appeared in the VBA discussion group.

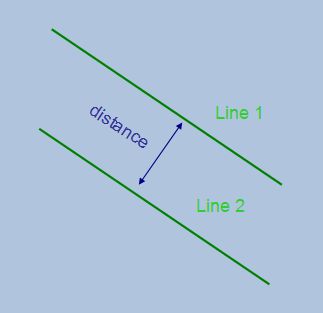

Distance between Parallel Lines

Q Measuring Parallel Lines

• How do I find the distance between two parallel lines?

A The simplest way, posted by Dean BB on the MicroStation VBA discussion group, is Use the measure minimum distance command and get the measurement from CommandState.MeasureResult1.

Here's another way to find the distance between parallel lines, which is a programmer's approach to the problem. The outline of this solution is …

• Create a line location class
• Use the location class to collect two references to line elements
• Extract the vector representation of each line
• Compare the vectors to find if they are parallel
• Create a perpendicular vector from one line to the other
• Measure the length of the perpendicular vector

The code for this project is available in VBA project MeasureDistance. Unpack the ZIP archive and copy MeasureDistance.mvba to a memorable location, such as Workspace\projects\untitled\mvba.

The projects contains two modules: modMain and clsLineLocator. modMain exists to provide the Main entry point. The MicroStation keyin to run this project is …

vba run [MeasureDistance]modMain.main

The Main subroutine creates an instance of clsLineLocator and starts MicroStation's locate logic …

Public Sub Main()
    CommandState.StartLocate New clsLineLocator
End Sub

clsLineLocator is a class module that Implements ILocateCommandEvents. It prompts you to locate two lines. Each time you locate a line, it stores a reference to that line.

When you've located two lines, it starts its computations. The first computation is to find whether the two lines are parallel …

' ---------------------------------------------------------------------
'   LinesParallel
' ---------------------------------------------------------------------
Public Function LinesParallel(ByVal oLine1 As LineElement, ByVal oLine2 As LineElement) As Boolean
    LinesParallel = False

    Dim v1                                  As Point3d
    Dim v2                                  As Point3d

    v1 = Point3dSubtract(oLine1.EndPoint, oLine1.StartPoint)
    v2 = Point3dSubtract(oLine2.EndPoint, oLine2.StartPoint)

    LinesParallel = Point3dAreVectorsParallel(v1, v2)
End Function

The second computation is to calculate the distance between the two lines …

' ---------------------------------------------------------------------
'   DistanceBetweenLines
'   Return the perpendicular distance between two lines, preferably parallel
' ---------------------------------------------------------------------
Public Function DistanceBetweenLines(ByVal oLine1 As LineElement, ByVal oLine2 As LineElement) As Double
    DistanceBetweenLines = 0#

    Dim v1                                  As Point3d
    Dim v2                                  As Point3d
    Dim pntProjected                        As Point3d

    pntProjected = oLine1.ProjectPointOnPerpendicular(oLine2.StartPoint, Matrix3dIdentity)
    DistanceBetweenLines = Point3dDistance(pntProjected, oLine2.StartPoint)
End Function

MultiLine Length

Q Measuring MultiLines

• How I find the length of a MultiLineElement?

A MicroStation multilines let you draw complex linear features as if you are drawing a single line or line-string. Unfortunately, the VBA object MultiLineElement does not expose many of the properties that one might reasonably expect of a linear element. For example, there is no Length property, so how would you find the length of a MultiLineElement using VBA?

However, MultiLineElement does include the Drop method. Drop creates an enumeration of the components of a multiline. Since each component of a multiline must be the same length, you can drop the multiline and measure the length of the first component. Here's a function that implements that idea …

Sub TestMultiLine ()
    ' This is for testing: it picks up the multiline element currently in a select set
    Dim oEnumerator As ElementEnumerator
    Set oEnumerator = ActiveModelReference.GetSelectedElements
    While oEnumerator.MoveNext
        Set oElement = oEnumerator.Current
     	Dim length     As Double
     	length = MeasureMultiLine (oElement.AsMultiLineElement)
        Debug.Print "Length=" & CStr(oLine.Length)
    Wend
End Sub
' ---------------------------------------------------------------------------------
Function MeasureMultiLine(ByVal oMultiLine    As MultiLineElement) As Double
    MeasureMultiLine = 0#
    Dim oComponents As ElementEnumerator
    Set oComponents = oMultiLine.Drop
    Dim oLine       As LineElement
    If oComponents.MoveNext Then
        Set oLine = oComponents.Current
        MeasureMultiLine = oLine.Length
    End If
End Function

MicroStation XM: Element Property Handlers

The code above works fine, and is compatible with MicroStation V8 2004 Edition. MicroStation XM provides a new way to interrogate elements using a Property Handler. This approach was suggested by Harry Stegeman, a regular contributor to the Bentley VBA Discussion Group.

Sub ShowMultilinePropertyStrings(oElement As Element)
    If Not oElement.Type = msdElementTypeMultiLine Then
        Debug.Print "Expected a multiline"
        Exit Sub
    End If

    Dim oPropertyHandler As PropertyHandler
    Set oPropertyHandler = CreatePropertyHandler(oElement)

    Dim arraySpec As String
    arraySpec = "Segments[" & (NumSegments(oPropertyHandler) - 1) & "]"

    ShowDisplayString oPropertyHandler, arraySpec & ".Start"
    ShowDisplayString oPropertyHandler, arraySpec & ".End"
    ShowDisplayString oPropertyHandler, arraySpec & ".Length"
    ShowDisplayString oPropertyHandler, arraySpec & ".Direction"
    ShowDisplayString oPropertyHandler, arraySpec & ".ElevationAngle"
    ShowDisplayString oPropertyHandler, arraySpec & ".DeltaX"
    ShowDisplayString oPropertyHandler, arraySpec & ".DeltaY"
End Sub
' ---------------------------------------------------------------------------------
Private Sub ShowDisplayString(oPropertyHandler As PropertyHandler, accessString As String)
    On Error GoTo HandleError

    If Not oPropertyHandler.SelectByAccessString(accessString) Then
        Debug.Print "Property '" & accessString & "' not found!"
    Else
        Debug.Print oPropertyHandler.GetDisplayString
    End If

    Exit Sub

HandleError:
    Debug.Print Err.Description
End Sub
