MicroStation .NET: Form Base Class

DgnPlatformNet

Introduction

This article is for C# developers who want to write an application for MicroStation CONNECT. It describes a way to use a .NET Form in your own app. This is not a complete application: rather, it describes what might otherwise be a non-intuitive approach to solve a problem.

This article introduces a .NET Form class TopLevelForm. TopLevelForm is intended to be inherited by your Form.

The Problems that TopLevelForm Solves

Desirable Form behaviour implemented by the TopLevelForm class includes …

Attaching Form to MicroStation
Handling form closed event
Handling form minimized event
Providing a way to restore your Form after it's been minimized

Many AddIns have a top-level form or dialog box. The form opens when the AddIn is loaded (mdl load MyApp). This screenshot is taken from our File Collector example …

A user can minimize a form (using the - button) or dismiss the form (using the x button). Once minimized or dismissed, there's no way to restore the form to make it visible. A related problem is that a .NET AddIn cannot be unloaded from MicroStation. Consequently, you can't key-in mdl unload MyApp followed by mdl load MyApp to pop that dialog.

Design vs. Release

When you deliver your AddIn to a customer, you want it to look and behave like any other MicroStation dialog-based app. You do that by inheriting your Form from Bentley.MstnPlatformNET.WinForms.Adapter. Then, in code, you attach your Form to MicroStation. However, Bentley.MstnPlatformNET.WinForms.Adapter is not compatible with the Visual Studio designer. When you attempt to open such a class, Visual Studio complains …

To get around that problem, during development you should inherit your dialog from Form and switch to the Bentley class for your release build. A simple way to achieve that result is to define a symbol in your DEBUG build, and use that to determine your form's class …

#if DESIGN
    public partial class TopLevelForm : Form
#else
    public partial class TopLevelForm : Bentley.MstnPlatformNET.WinForms.Adapter
#endif

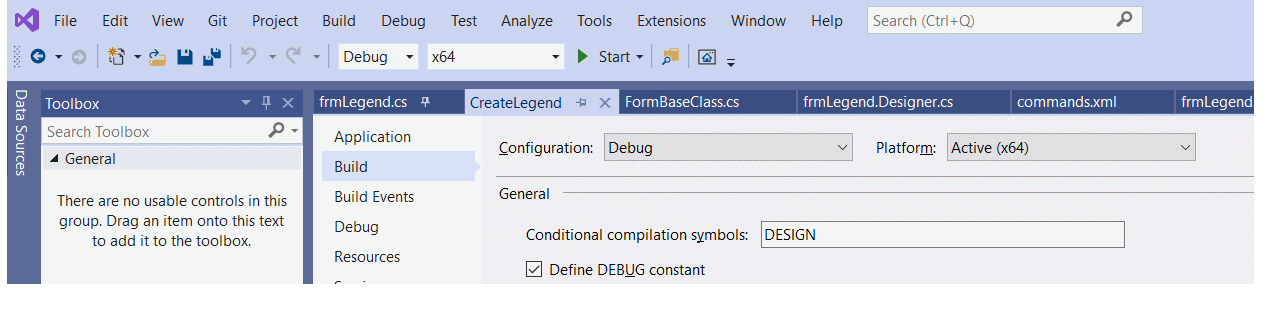

Here's where you define that macro in your Visual Studio DEBUG configuration …

Thanks to Maury for that tip! You switch between Debug, where DESIGN is defined, and Release using the Viz Studio Configuration selector.

The TopLevelForm class described here includes that pattern.

Inherit from TopLevelForm

The base class described here is named TopLevelForm. Write your own class to inherit from that class …

public class MyForm : TopLevelForm {}

TopLevelForm uses the configuration switch above to derive from the appropriate form, so you don't have to.

Attach Form to MicroStation

When you attach a Form to MicroStation, it automatically gains certain behaviour. The MstnPlatformNET API provides several AttachXxx methods. For our TopLevelForm we use the AttachAsTopLevelForm() method …

const bool UseMicroStationPositioning = true;
AttachAsTopLevelForm(addIn, UseMicroStationPositioning);

The addIn parameter is the run-time instance of your AddIn. Here's an example of MyForm's constructor that calls its base class TopLevelForm …

public MyForm() : base (MyApp.Instance)

Where MyApp.Instance is a static method of your AddIn. It's a pattern that is common to the .NET examples provided with the MicroStation CONNECT SDK.

Handle the Form Closed Event

When a user closes your Form using the x button, the form is destroyed. If your AddIn maintains a reference to the form, then it should be set to null. The OnClosed event handler provides the hook for you to achieve that result.

We start by defining a delegate method …

public delegate void FormClosed();

That delegate is assigned to a member of the TopLevelForm class …

FormClosed _FormClosedDelegate;

The delegate is called when the form is closed …

private void TopLevelForm_FormClosed(object sender, FormClosedEventArgs e)
{
    _FormClosedDelegate();
}

That calls the FormClosed() method in your AddIn …

public void FormClosed()
{
    _form = null;
}

The we create an instance of our AddIn's form, we pass a reference to the AddIn's FormClosed() method. That reference is stored in the _FormClosedDelegate mentioned previously.

public MyForm CreateForm()
{
  if (null == _form)
  {
    _form = new MyForm(Instance.FormClosed);
    _form.Show();
  }
  return _form;
}

Handle the Form Minimized Event

When a Form is mimimized, it's visually shrunk. The Form still exists, the the _form reference in your AddIn remains valid. The TopLevelForm.Restore() method takes care of popping your Form. However, the method implementation difference depending on its base class …

Inherited from Form: implements Restore()
Inherited from Bentley.MstnPlatformNET.WinForms.Adapter: uses the Restore() method provided by that class

Here's the implementation of Restore() …

public void Restore()
{
  if (WindowState.HasFlag(System.Windows.Forms.FormWindowState.Minimized))
  {
    WindowState = System.Windows.Forms.FormWindowState.Normal;
  }
}

Acknowledgements

This article was written as a summary of my own experience in developing a .NET Form for MicroStation. I was helped on my way by hints & tips on the MicroStation Programming Forum. Special thanks go to …

Jan Šlegr, a regular contributor to Bentley Communities, for his suggestions and continual efforts to improve my .NET programming skills
Maury for his suggestions about implementing a MicroStation dialog using a .NET Form

Download the DGN File Enumerator Project

The code and usage example for the TopLevelForm class is provided with the DGN File Enumerator project.

Questions

Post questions about MicroStation programming to the MicroStation Programming Forum.
